Node Build Guides
Seven community-proven solar repeater builds — from beginner plug-and-play to ultra-budget DIY
⚠️ Prices verified March 2026. Always verify current pricing before purchasing — tariffs, supply chain fluctuations, and vendor promotions may affect costs. Shipping not included.
Quick Comparison
| # | Build | Difficulty | Firmware | Total Cost |
|---|---|---|---|---|
| 1 | Sid-NY Solder Free 8W Solar Repeater | ⭐⭐ Easy | MeshCore | $52.83 |
| 2 | SenseCAP Solar Node P1-Pro | ⭐ Beginner | MeshCore / Meshtastic | $95.99 |
| 3 | Austin Mesh No-Solder Solar Repeater | ⭐⭐ Easy | MeshCore / Meshtastic | $172.97 |
| 4 | Puget Mesh $50 MeshCore Repeater | ⭐⭐ Easy | MeshCore | $62.89 |
| 5 | DC Mesh Community Solar Repeater | ⭐⭐⭐ Intermediate | MeshCore / Meshtastic | $194.20 |
| 6 | Harbor Breeze Solar Light Hack | ⭐⭐ Easy | MeshCore / Meshtastic | $70.97 |

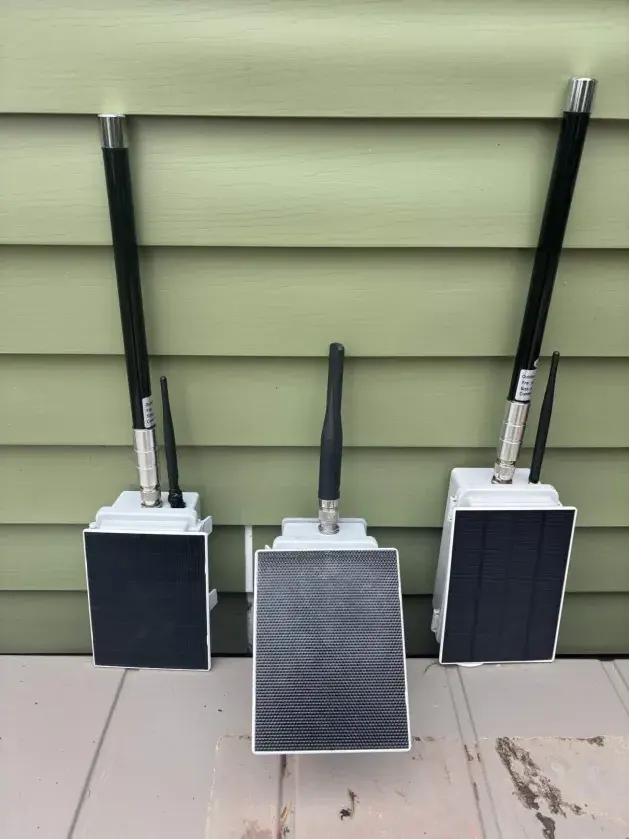

Sid-NY Solder Free 8W Solar Repeater
A WNY-designed solder-free build using an 8W solar panel and CN3791 solar charge controller to power the XIAO nRF52840 + Wio-SX1262 radio kit. Everything fits in an IP65 ABS enclosure. A short N-Female to IPEX pigtail connects the radio to the 5 dBi omni antenna mounted outside. No soldering — all plug-and-play connections.
Notes: WNY-original no-solder design. CN3791 charge controller accepts solar panel input directly — no USB battery bank required. All connections are plug-and-play.
Parts List
7 items| Part | Description | Vendor | Price | Buy |
|---|---|---|---|---|
XIAO nRF52840 & Wio-SX1262 Kit | Low-power LoRa radio kit, MeshCore compatible, ultra-compact | 🌱Seeed Studio | $13.49 | Buy |
8W Solar Panel | 8W outdoor solar panel for reliable charging in WNY conditions | 🛒Amazon | $11.99 | Buy |
CN3791 6V Solar Charge Controller | Solar LiPo charge controller — accepts solar panel input directly, no USB battery bank needed | 🔗AliExpress | $3.13 | Buy |
150×100×70mm ABS IP65 Enclosure | Weatherproof outdoor project box | 🛒Amazon | $8.99 | Buy |
Omni 5 dBi 915 MHz Antenna | Outdoor omnidirectional antenna for extended LoRa coverage | 🛒Amazon | $12.95 | Buy |
N-Female to IPEX Pigtail (10 cm) | Antenna connector adapter from radio board IPEX to N-Female bulkhead | 🔗AliExpress | $0.99 | Buy |
Cable Gland (for solar panel wire) | Waterproof cable entry gland for solar panel wires into enclosure | 🛒Amazon | $1.29 | Buy |
| Estimated Total | $52.83 | |||
Low-power LoRa radio kit, MeshCore compatible, ultra-compact
Solar LiPo charge controller — accepts solar panel input directly, no USB battery bank needed
Outdoor omnidirectional antenna for extended LoRa coverage
Antenna connector adapter from radio board IPEX to N-Female bulkhead
Waterproof cable entry gland for solar panel wires into enclosure
SenseCAP Solar Node P1-Pro
All-in-one solar repeater. Comes with 5W panel, 4×18650 batteries, GPS, antenna, and mounting brackets. Flash MeshCore firmware and mount — no soldering required.
Notes: Best for beginners or anyone who wants a quick, reliable deploy.
Parts List
1 item| Part | Description | Vendor | Price | Buy |
|---|---|---|---|---|
SenseCAP Solar Node P1-Pro | Complete unit: nRF52840 + LoRa SX1262, 5W solar panel, GPS, 4×18650 batteries, enclosure, antenna, mounting brackets | 🌱Seeed Studio | $95.99 | Buy |
| Estimated Total | $95.99 | |||
Complete unit: nRF52840 + LoRa SX1262, 5W solar panel, GPS, 4×18650 batteries, enclosure, antenna, mounting brackets
Austin Mesh No-Solder Solar Repeater
Battle-tested design (Version 5.0) from Austin Mesh. Uses Voltaic V25 battery as solar charge controller — no soldering, no battery management chips. Panel → battery via USB → RAK board via USB.
Notes: Proven design with real-world WNY-comparable climate data. Highly recommended.
Parts List
10 items| Part | Description | Vendor | Price | Buy |
|---|---|---|---|---|
Soshine 6W Solar Panel | 6W USB output solar panel for outdoor use | 🛒Amazon | $15.00 | Buy |
Voltaic Systems V25 Battery (6,700mAh Always-On) | Solar-optimized battery pack with Always-On mode — acts as charge controller | ☀️Voltaic Systems | $45.00 | Buy |
RAKwireless WisBlock Meshtastic Starter Kit (RAK19007 + RAK4631) | Pre-flashed Meshtastic/MeshCore base + core board, LoRa & BLE antennas, USB cable | 📡Rokland | $34.97 | Buy |
IPEX to N-Type Female Pigtail | Antenna connector adapter for RAK board to fiberglass antenna | 📡Rokland | $4.00 | Buy |
915 MHz 3 dBi Fiberglass Antenna (N-Female) | Outdoor fiberglass antenna with bracket mount — more durable than rubber duck | 📡Rokland | $39.00 | Buy |
ABS Weatherproof Enclosure (230×150×87mm) | Outdoor project box with mounting tabs | 🛒Amazon | $13.00 | Buy |
Drain / Vent Plug (VENT-PS1YBKN-8001) | Allows condensation to escape while keeping water out | 🛒Amazon | $5.00 | Buy |
3/4 NPT Cable Gland | Waterproof cable pass-through for USB / solar cable | 🛒Amazon | $2.00 | Buy |
Proxicast Self-Fusing Silicone Tape | Weatherproofing wrap for antenna connections | 📡Rokland | $2.00 | Buy |
3 ft KMR400 Coax Cable (N-Female to N-Male) | Low-loss coax extension between enclosure and antenna | 📡Rokland | $13.00 | Buy |
| Estimated Total | $172.97 | |||
Solar-optimized battery pack with Always-On mode — acts as charge controller
Pre-flashed Meshtastic/MeshCore base + core board, LoRa & BLE antennas, USB cable
Antenna connector adapter for RAK board to fiberglass antenna
Outdoor fiberglass antenna with bracket mount — more durable than rubber duck
Allows condensation to escape while keeping water out
Low-loss coax extension between enclosure and antenna
Puget Mesh $50 MeshCore Repeater
Ultra-budget MeshCore-specific build from Puget Mesh community. Uses XIAO nRF52840 + Wio-SX1262 kit (low-power nRF chip), small solar panel, TP4056 charge board, and a 10,000mAh LiPo. Minimal soldering.
Notes: Best value build. Ideal for deploying multiple nodes at low cost.
Parts List
6 items| Part | Description | Vendor | Price | Buy |
|---|---|---|---|---|
XIAO nRF52840 + Wio-SX1262 Kit | Low-power LoRa radio kit, MeshCore/Meshtastic compatible, ultra-compact | 🌱Seeed Studio | $13.49 | Buy |
Linx ANT-916-CW-HW-SMA Antenna | 915 MHz SMA antenna for LoRa repeater | 🔌Digi-Key | $10.00 | Buy |
RAKwireless Solar Panel with JST 1.5 connector (3-Pack) ℹ️ Price per panel | Small 5.5×3.5 inch solar panels — price shown per panel (1/3 of 3-pack) | 📡Rokland | $11.00 | Buy |
TP4056 USB-C Li-ion Charger Board (5-Pack) ℹ️ Price per unit | 18650/LiPo solar charge board — price shown per unit (1/5 of pack) | 🛒Amazon | $1.40 | Buy |
LeMotech IP65 ABS Junction Box (158×90×60mm) | Waterproof dustproof outdoor enclosure | 🛒Amazon | $7.00 | Buy |
MakerFocus 10,000mAh LiPo Battery (3.7V) | Large capacity rechargeable LiPo for extended cloudy-day runtime | 🛒Amazon | $20.00 | Buy |
| Estimated Total | $62.89 | |||
Low-power LoRa radio kit, MeshCore/Meshtastic compatible, ultra-compact
Small 5.5×3.5 inch solar panels — price shown per panel (1/3 of 3-pack)
18650/LiPo solar charge board — price shown per unit (1/5 of pack)
Large capacity rechargeable LiPo for extended cloudy-day runtime
DC Mesh Community Solar Repeater
Battle-tested build from DC Mesh (6+ months uptime at HacDC). Based on RAK WisBlock with Voltaic V25 battery + larger 10W solar panel for northern climates. Includes drain plug and weatherproofing detail.
Notes: Designed for mid-Atlantic climate — closely matches WNY conditions. Proven track record.
Parts List
9 items| Part | Description | Vendor | Price | Buy |
|---|---|---|---|---|
RAKwireless WisBlock Meshtastic Starter Kit (RAK19007 + RAK4631) | Pre-flashed MeshCore/Meshtastic base + core board | 📡Rokland | $34.97 | Buy |
Voltaic Systems V25 Battery (6,700mAh Always-On) | Solar-optimized Always-On battery, acts as charge controller | ☀️Voltaic Systems | $45.00 | Buy |
Voltaic Systems 10W ETFE Solar Panel | 10W panel recommended for northern/cloudy climates like WNY | ☀️Voltaic Systems | $65.00 | Buy |
IP67 Weatherproof Enclosure (11.2×7.7×5.1 in, metal latches) | Heavy-duty outdoor enclosure with IP67 rating | 🛒Amazon | $23.00 | Buy |
915 MHz 5.8 dBi Fiberglass Omni Antenna (N-Male) | High-gain outdoor antenna for extended coverage | 📡Rokland | $15.00 | Buy |
IPEX to N-Type Female Pigtail | Antenna connector adapter | 📡Rokland | $4.00 | Buy |
Drain / Vent Plug (VENT-PS1YBKN-8001) | Enclosure vent for condensation drainage | 🛒Amazon | $5.00 | Buy |
PG9 Cable Glands (40-pack) ℹ️ Price per unit | Waterproof cable entry glands — price shown per unit | 🛒Amazon | $0.23 | Buy |
Proxicast Self-Fusing Silicone Tape | Weatherproof wrap for RF connections | 📡Rokland | $2.00 | Buy |
| Estimated Total | $194.20 | |||
Pre-flashed MeshCore/Meshtastic base + core board
Solar-optimized Always-On battery, acts as charge controller
10W panel recommended for northern/cloudy climates like WNY
Heavy-duty outdoor enclosure with IP67 rating
High-gain outdoor antenna for extended coverage
Waterproof cable entry glands — price shown per unit
Harbor Breeze Solar Light Hack
Creative low-cost build using a Harbor Breeze solar garden light ($15) as the enclosure — solar panel, battery, and charge controller included. RAK WisBlock fits inside the solar compartment. Requires minor soldering and drilling.
Notes: Stealthy and inexpensive. Light still works at night. Great for property owners who want a discreet node.
Parts List
5 items| Part | Description | Vendor | Price | Buy |
|---|---|---|---|---|
Hampton Bay / Harbor Breeze Solar Spot Light | Solar garden light — includes solar panel, LiOn cell, charge controller, waterproof enclosure | 🏠Lowes | $15.00 | Buy |
RAKwireless WisBlock Meshtastic Starter Kit (RAK19007 + RAK4631) | Pre-flashed MeshCore/Meshtastic board — fits inside solar light compartment | 📡Rokland | $34.97 | Buy |
IPEX to SMA Pigtail + 915 MHz Antenna | External antenna connector + SMA antenna for improved range | 🛒Amazon | $12.00 | Buy |
JST-PHR-2 Connector (or solder direct) | Battery connector for RAK board — alternative is direct solder | 🛒Amazon | $3.00 | Buy |
Marine Silicone Sealant | Weatherproofing for drilled holes | 🛒Amazon | $6.00 | Buy |
| Estimated Total | $70.97 | |||
Solar garden light — includes solar panel, LiOn cell, charge controller, waterproof enclosure
Pre-flashed MeshCore/Meshtastic board — fits inside solar light compartment
External antenna connector + SMA antenna for improved range
Battery connector for RAK board — alternative is direct solder
Ready to Deploy?
Once your build is complete, follow the repeater setup guide to flash MeshCore firmware, configure your node, and get it on the air.
